The Role of Instrumentation Valves in Process Plants
Instrumentation valves are small, precision-engineered valves used to control, isolate, and protect process instruments such as pressure gauges, transmitters, flow meters, and analyzers from the main process line. Though compact in size, these valves play a critical role in ensuring accurate measurement, safe instrument maintenance, and overall process reliability in industrial plants.
Unlike standard process valves designed for large-volume flow control, instrumentation valves are engineered for tight tolerances, leak-tight sealing, and frequent operation, often in high-pressure or high-purity applications where even minor inaccuracies can affect critical process readings.

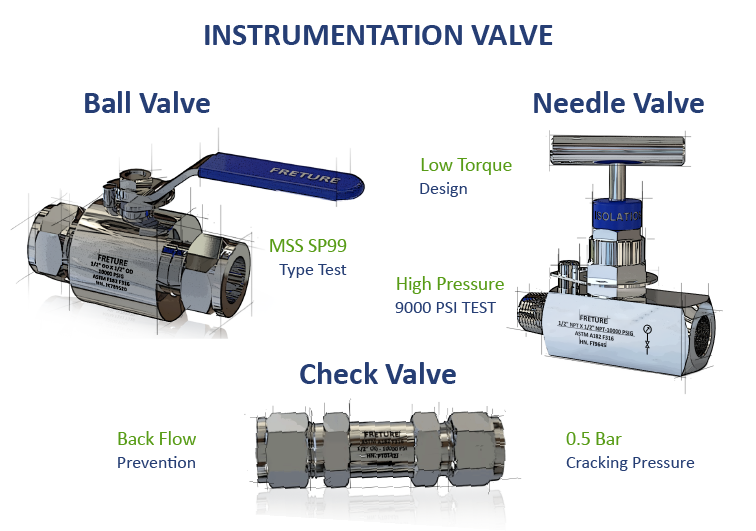

Common Types of Instrumentation Valves
Needle valves provide fine, precise flow regulation through a tapered stem and seat, making them ideal for throttling and metering applications in instrumentation circuits. Manifold valves combine multiple needle or ball valves into a single compact body, simplifying the isolation, equalization, and venting of differential pressure transmitters. Ball valves and plug valves are also widely used for quick on/off isolation duty in instrument air and sampling lines.
Gauge valves and root valves, typically installed directly at the process tap point, provide the first point of isolation between the main pipeline and the instrument, allowing safe gauge replacement or calibration without interrupting plant operation.
Applications Across Process Industries
Instrumentation valves are used extensively in oil and gas production, refineries, petrochemical complexes, power plants, and pharmaceutical facilities for pressure gauge isolation, sampling systems, chemical injection lines, and differential pressure flow measurement. Their reliability directly impacts the accuracy of plant monitoring systems and the safety of personnel performing instrument maintenance, particularly during planned isolation activities where instrument valves serve as the final point of control before depressurizing a transmitter or gauge.
Selecting the Right Instrumentation Valve
Choosing the correct instrumentation valve depends on factors such as operating pressure, fluid type, required flow precision, and connection type (NPT, compression, or flanged). Material selection—commonly stainless steel for corrosion resistance—along with compliance to relevant ASME and ANSI standards, ensures dependable performance in critical measurement and control applications.
Because instrumentation valves are often installed in confined spaces close to transmitters and gauges, compact body design and ease of operation in tight quarters are also important practical considerations. Anti-blowout stem design, which mechanically prevents the stem from being ejected under pressure during maintenance, is a critical safety feature that should be specified for all instrumentation valves handling pressurized process fluids.
Why Quality Matters in Instrumentation Valves
Although individually low in cost compared to large process valves, instrumentation valves directly influence the accuracy of safety-critical measurements and the integrity of plant monitoring systems. A failed or leaking instrumentation valve can lead to inaccurate pressure or flow readings, compromised safety interlocks, or unplanned shutdowns. Investing in precision-manufactured instrumentation valves from a reputable supplier, with consistent quality control and material certification, ensures accurate, leak-free performance across the thousands of measurement points typically found in a modern process plant.
About Freture Techno Pvt. Ltd.
Freture Techno Pvt. Ltd. is one of India’s leading industrial valve manufacturers, headquartered in Mumbai and trusted by enterprises across the oil & gas, petrochemical, power, and chemical processing sectors. With a strong focus on engineering precision, quality compliance, and reliable after-sales support, Freture Techno designs and manufactures instrumentation valves engineered to perform in the most demanding industrial environments. Backed by a team of experienced engineers and a commitment to international quality standards, Freture Techno continues to be the preferred valve partner for EPC contractors, plant operators, and process industries across India and abroad.
